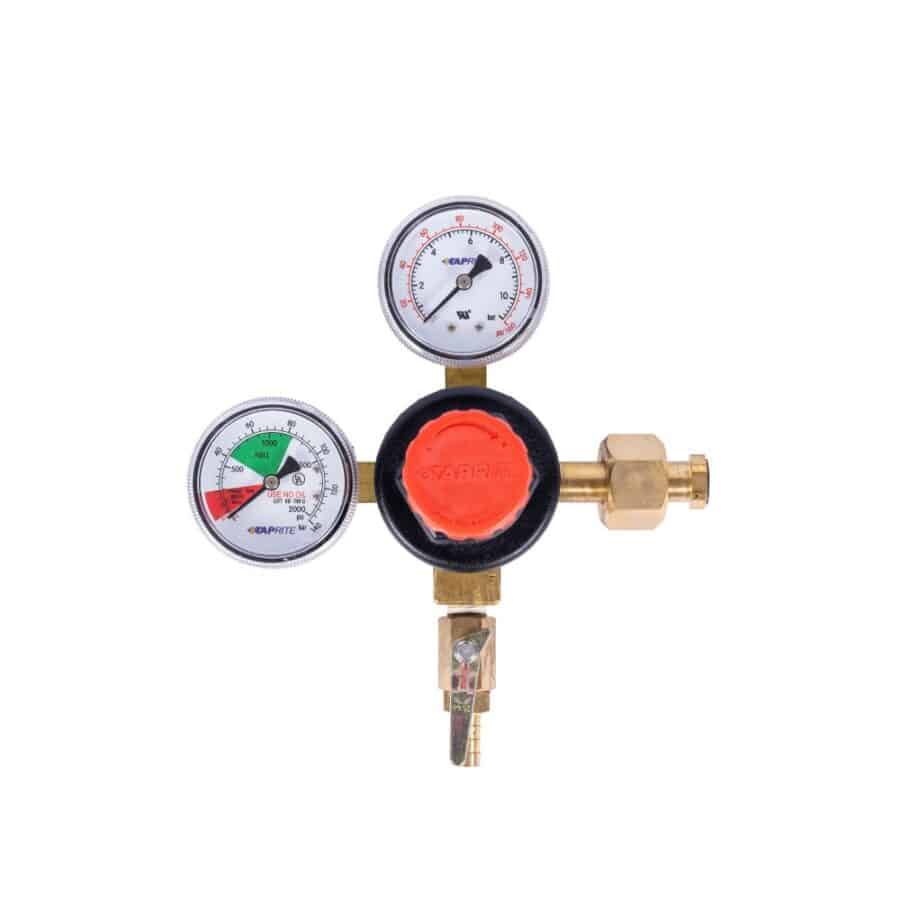

Taprite High Pressure CO2 Soda Regulator, Dual Gauge
The Taprite CO2 regulator: top-shelf dual-gauge regulator from the biggest name in beverage delivery. Robust design delivers performance and reliability. Built to last, durable, and loaded with professional features, and made in the U.S.A!
Carbon Dioxide regulators are gas cylinder regulators that control the amount of Co2 dispensed for various applications. Some CO2 regulators have flow restrictors that ensure delivery of the gas at a constant rate.
Importance of CO2 Regulators
Maintaining accurate pressure in the tank is very important as it decides the quality of beer dispensed. To get that perfectly carbonated beverage, the CO2 regulator must be set at an optimum pressure level.
When the pressure is too high, it results in an extremely foamy beverage while on a lower pressure the excess foam looks loose and the beverage soon becomes flat. So, setting an optimum pressure in your CO2 regulator is important.
In order to adjust the level of gas pressure, you just need to close the shut-off valve placed on the bottom of the regulator that is connected to the hose which goes into the keg. After this, the screw can be turned clockwise or anticlockwise to increase or decrease the pressure respectively. Then, you would require expelling the pressure in the hose and opening the valve at the regulator.
Taprite CO2 Dual Gauge Regulator Features
- Solid brass body with extra long nipple
- Large, easy-adjust locking polycarbonate bonnet – super durable and user-friendly
- High volumetric flow for continuity in product dispensing
- Permanent quad-ring seal on inlet; no need for new fiber washers every tank change
- Built-in 10 micron filter to keep contaminants out
- Ball-type check valve to prevent back flow into regulator and tank
- Approved for use by all major beverage distributors
Regulator Specifications
- 0-160 PSI line pressure gauge
- 0-2000 PSIÂ tank pressure gauge
- CGA320 Inlet
- 5/16″ Barb Shut-off with Check Valve
- High Pressure, High Flow
- Regulator Specifications
- Installation Instructions
